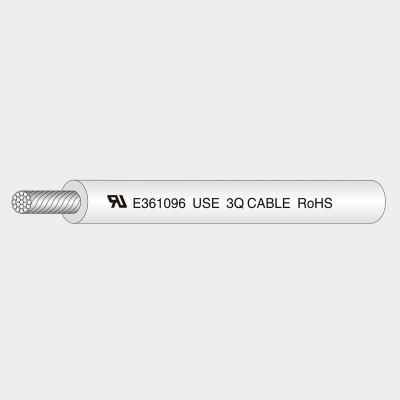

產品說明
1. 額定溫度：90oC 2.額定電壓：600V 3.執行標準：UL854 4.導體使用絞合14-2AWG鍍錫銅絲 5. 絕緣采用XLPE 6.通過VW-1燃燒 7.產品符合歐盟RoHS要求 8.適用于用戶引入電線 | 1. Rated temperature:90oC 2.Rated voltage:：600V 3.According to:UL854 4.Stranded, Tinned copper conductor 14-2AWG 5.XLPE insulation 6.Passes VW-1 Vertical flame test 7.Environmental testing pass RoHS 8.Service-Entrance Wire |
產品規格
| TYPE | Conductor導體 | 導體外徑 | 絕緣厚度 | 完成外徑 | 最大導體電阻 MAX.COND. RESISTANCE (Ω/Km,20℃) | 標準長 STANDARD PUT-UP (M/ROLL) | |
| 型號 | 規格(AWG) Size | 線數/線徑 NO./MM | Conducto outer diameter | Insulatio thickness | Overal Diameter | ||
USE USE-2 | 14 | 41/0.254 | 1.87 | 1.14 | 4.30 | 8.96 | 305 |
| 12 | 65/0.254 | 2.36 | 4,8 | 5.64 | |||
| 10 | 105/0.254 | 3.00 | 5.40 | 3.546 | 150 | ||
| 8 | 164/0.254 | 3.80 | 1.52 | 7.30 | 2.23 | ||
| 6 | 260/0.254 | 4.80 | 8.40 | 1.403 | 100 | ||
| 4 | 412/0.254 | 6.00 | 9.50 | 0.882 | |||
| 2 | 665/0.254 | 7.70 | 11.50 | 0.5548 | |||
